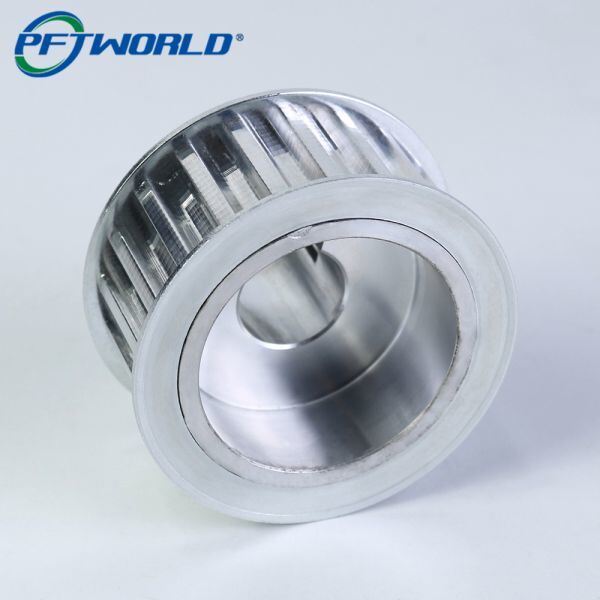

CNC Machining Customizable Metal Pulley Precision Machined Grooves

Metal pulleys are essential components in industrial automation, robotics, conveyor systems, and precision machinery. Properly machined grooves ensure accurate belt alignment, smooth rotation, and long service life. CNC machining enables highly customizable pulleys with tight tolerances and complex groove geometries for specialized applications.

This guide explains how CNC machining produces precision metal pulleys, key considerations for customization, and best practices for design and material selection.

CNC-machined pulleys can be produced from various metals depending on strength, wear resistance, and environmental conditions.

Tip: Aluminum is preferred for lightweight applications, while stainless steel is used when corrosion resistance and mechanical strength are critical.

The grooves of a pulley determine belt fit, torque transmission, and operational efficiency.

• V-groove: Common for V-belts; precise angle critical for grip
• Timing belt groove: Requires exact pitch and profile for synchronous motion
• Flat or round groove: For flat belts or specialized applications

CNC machining ensures:

• Tolerances as tight as ±0.01 mm
• Repeatable groove dimensions across batches
• Smooth surface finish (Ra 0.4–1.6 µm) to reduce belt wear

Proper groove design reduces:

• Belt slippage
• Uneven wear
• Vibration and noise

CNC machining allows pulleys to be fully customized:

• Diameter and width: From small (<20 mm) to large (>200 mm) pulleys
• Groove number and spacing: Multi-groove pulleys for simultaneous belt operation
• Bore and keyway configuration: Standard or custom keyways, set screws, or tapered bores
• Surface finish: Polished or anodized surfaces for low friction and corrosion protection

Customizable features help manufacturers match pulleys to specific machines or belts.

1. CAD Design: Specify dimensions, groove geometry, bore, and material.
2. CAM Programming: Toolpath optimized for material, groove profile, and spindle speed.
3. Rough Machining: Remove bulk material using end mills or turning tools.
4. Precision Groove Cutting: Fine cuts using high-speed CNC milling or turning.
5. Surface Finishing: Deburring, polishing, or coating as required.
6. Inspection: Verify dimensions, groove angle, bore tolerance, and surface finish.

Factory Tip: Using high-rake carbide tools and controlled feed rates minimizes burrs and ensures precise groove profiles in metals like aluminum and stainless steel.

Quality control ensures rotational balance, groove precision, and mechanical reliability:

• Dimensional check: Using micrometers, CMM, or optical comparators
• Surface roughness measurement: Ensure Ra 0.4–1.6 µm
• Bore and keyway verification: Fit test with shafts or belts
• Dynamic balancing: For high-speed applications to prevent vibration

• Industrial automation: Conveyors, robotic arms
• Precision machinery: Optical devices, lab equipment
• Automotive & EV components: Timing belt drives
• Energy systems: Generators, wind turbines
• Custom mechanical assemblies requiring specific belt alignment and torque transfer

• High precision: Tight tolerances ensure proper belt alignment
• Repeatable quality: Consistent production across batches
• Flexibility: Easy to produce prototypes or custom batches
• Material versatility: Aluminum, steel, brass, bronze, or custom alloys
• Reduced lead time: Faster than traditional casting or forging methods for small-to-medium runs

Custom CNC-machined metal pulleys are essential for high-precision mechanical systems where belt alignment, torque transmission, and durability are critical.

When sourcing CNC pulleys, consider:

• Material: Aluminum, stainless steel, brass, or bronze
• Groove type and number: V-belt, timing belt, flat, or custom
• Precision tolerance: ±0.01 mm for critical applications
• Surface finish: Polished or coated for wear and corrosion resistance
• Customization: Bore, keyway, diameter, and width tailored to your application

CNC machining ensures precision, repeatability, and flexibility for both prototypes and production runs.
